BitChem Bitumen Emulsion provides Low, medium and high viscosity with fast and slow setting characteristic that makes it an ideal product for Tack Coat & Prime Coat spray application. It is chocolate brown in colour and is a free flowing liquid at ambient temperature.



Grades Available :



Sl. No.	Grade	Type of Setting	Conforming to	Applications
1	RS1, RS2	Rapid Setting	As per IS 8887:2018	Ideal for Tack Coat applications
2	MS Grade, MS-High (High Viscosity)	Medium Setting	As per IS 8887:2018	Ideal for Tack Coat applications
3	SS1-ASTM	Slow Setting	As per ASTM D-2397-20	Ideal for Prime Coat & Fog Seal Applications



BitChem Bitumen Emulsion is a BIS Certified Product as per IS 8887:2018 with Licence No. CM/L-5100165786 BitChem Bitumen Emulsion RS-1, RS-2, MS Grade & MS High are conforming to as per IS 8887:2018 BitChem Bitumen Emulsion SS1-ASTM is conforming to as per ASTM D-2397-20



Recommended Rate of Application for Tack Coating:



Grade	RS1/ RS2	MS Grade	MS High
Type of Surface	Quantity in Kg/10 m² Area	Quantity in Kg/10 m² Area	Quantity in Kg/10 m² Area
Bitumen Surface	2 – 2.5	2 – 2.5	2 – 2.5
Aged Bitumen Surface	2.5 – 3	2.5 – 3	2.5 – 3
Primed Surface	2.5 – 3.0	2.5 – 3.0	1.5 – 3.0
Non-Bitumen Surface
Granular Base (Not Primed)	3.0 – 4.0	3.0 – 4.0	3.0 – 4.0
Cement Concrete Pavement	3.0 – 3.5	3.0 – 3.5	3.0 – 3.5



Recommended Rate of Application for Prime Coat & Fog Seal (SS1-ASTM):



Application	Quantity in Kg/10 m² Area
Prime Coat	6 – 9
Fog Seal	5 – 10

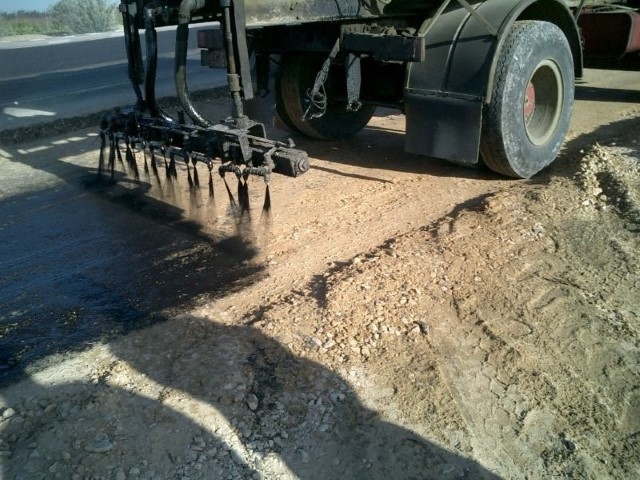

Prime Coat



Prime coat is an application of a low viscosity bitumen emulsion on a compacted granular base course which penetrate into the base (>8mm). A prime coat performs several important functions as given below:

• Coats and bonds loose mineral particles on the surface of the granular base
• Hardens or toughens the surface of the base
• Waterproof the surface of the base by plugging capillary or interconnected voids
• Provides adhesion or bond between the base and the bituminous mixture

Primer shall not be applied during a dust storm or when the weather is foggy, rainy or windy or when the temperature in the shade is less than 100C. BitChem deals in SS1 which is manufactured strictly as per ASTM D-2397-20 for Prime Coat Applications



Tack Coat



Tack Coat is a light application of low viscosity liquid bituminous material like emulsion to an existing surface (bituminous/ cement concrete/ primed granular surface) to facilitate a bond between the surface being paved and the overlaying course. The tack coat is recommended for all types of overlays. BitChem deals in RS1, RS2, MS Grade, MS-High which is ideal for Tack Coat Applications manufactured strictly as per IS 8887:2018



Fog Seal



Fog Seal is defined as “a light application of diluted bitumen emulsion used primarily to seal an existing bitumen surface to reduce raveling and enrich dry and weathered surfaces. Fog Seal is a method of incorporation of bituminous binder to an existing pavement to improve its waterproofing characteristics, preventing further stone loss by holding aggregate in place, rejuvenating surface and improving the surface appearance. BitChem deals in SS1 which is manufactured strictly as per ASTM D-2397-20 for Fog Seal Applications.
